Bianchi F.lli

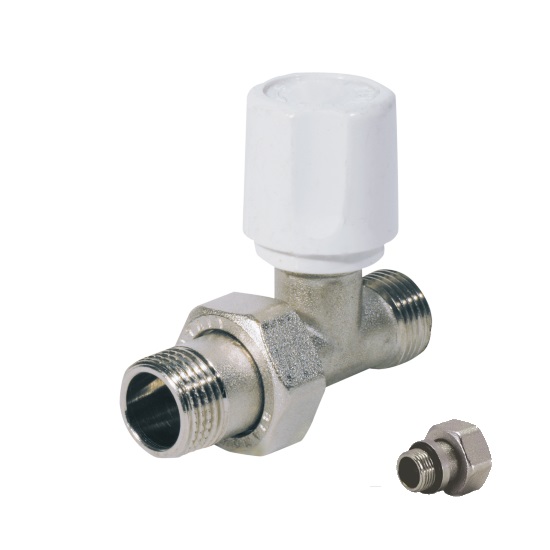

Straight radiator Euroconus valve for copper, multilayer and Pex pipe

Art. 413DE÷413DX

Straight radiator Euroconus valve for copper, multilayer and Pex pipe

Valvola diritta Eurocono attacco tubo rame, multistrato e Pex Scheda tecnica - Straight radiator Euroconus valve for copper, multilayer and Pex pipe
Legend
CW510LCW510L - low lead CW602NCW602N - DZR solarsolar

Items

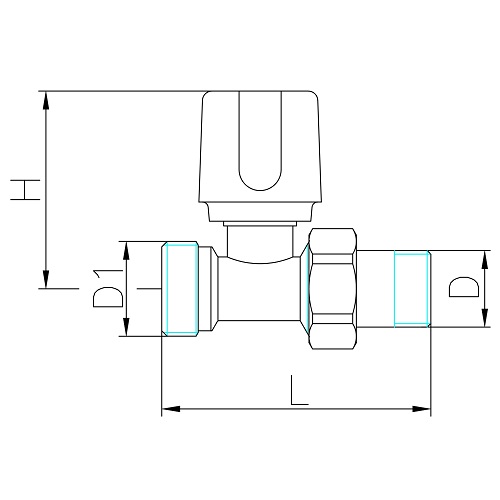

Code Version Size (D) Smooth Pack D1 H L
413DE
413DE00400 1/2" 10 3/4" 59 71.0
413DE0040G O-Ring 1/2" 10 3/4" 59 71.0
413DX
413DX00400 1/2 10 24x19 59 71.0
413DX0040G O-Ring 1/2" 0 24x19 59 71.0

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black

Max working temperature: 100°C
Max working pressure: 10 bar
Body in forged brass
Threads: ISO 228
Suitable for fi ttings for copper, PEX or multilayer piping
Allowed fl uids: water (Glycole max percentage: 50%)
