Bianchi F.lli

Straight radiator valve with wheelhandle, for copper, multilayer and Pex pipe

Art. 411

Straight radiator valve with wheelhandle, for copper, multilayer and Pex pipe

Valvola diritta attacco tubo rame, multistrato e Pex Scheda tecnica - Straight radiator valve with wheelhandle, for copper, multilayer and Pex pipe
Legend
CW510LCW510L - low lead CW602NCW602N - DZR solarsolar

Items

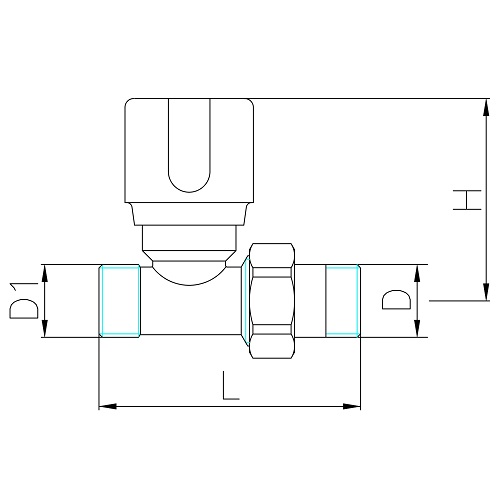

Code Version Size (D) Smooth Pack D1 H L
4110N00300 3/8" 10 1/2" 57 71.0
4110N0030G O-Ring 3/8" 10 1/2" 57 71.0
4110N00400 1/2" 10 1/2" 57 73.0
4110N0040G O-Ring 1/2" 10 1/2" 57 73.0

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black

Max working temperature: 100°C
Max working pressure: 10 bar
Body in forged brass
Threads: ISO 228
Suitable for fi ttings for copper, PEX or multilayer piping
Allowed fl uids: water (Glycole max percentage: 50%)
