Bianchi F.lli

Angle lockshield valve for copper, multilayer and Pex pipe

Art. 410K

Angle lockshield valve for copper, multilayer and Pex tube

Angle lockshield valve for copper, multilayer and Pex pipe %> Scheda tecnica - Angle lockshield valve for copper, multilayer and Pex pipe

Items

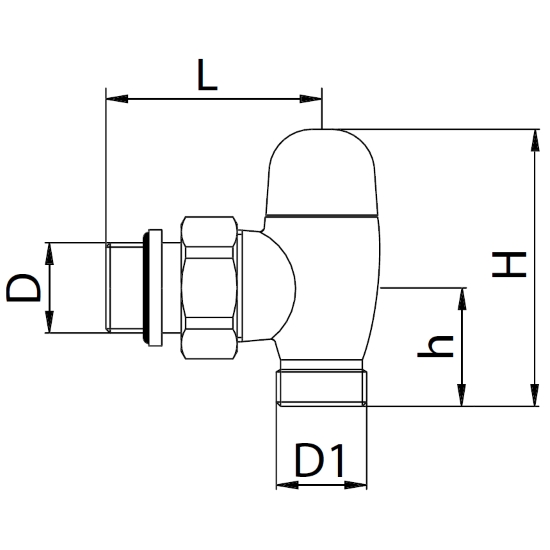

Code Version Size (D) Smooth Handle Pack D1 I L h
410K0004B0 O-Ring 1/2" Plastic 2 1/2" 28.5 55.5 63.0
410K0004C0 O-Ring 1/2" Plastic 2 1/2" 28.5 55.5 63.0
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Max working temperature: 100°C
Max working pressure: 10 bar
Body in forged brass
Threads: ISO 228
Max differential pressure: 1,2 bar
Thermostatic head attachment: M30x1,5
Suitable for fittings for copper, PEX or multilayer piping
Allowed fluids: water (Glycole max percentage: 50%)
