Angle thermostatic radiator valve with micrometric wheelhandle for copper, multilayer and Pex pipe
Art. 409TV
Angle thermostatic radiator valve with micrometric wheelhandle for copper, multilayer and Pex pipe
Legend
CW510L - low lead
CW602N - DZR
solar
Items

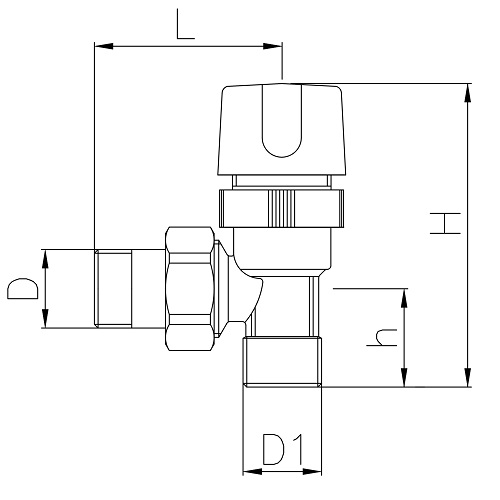

| Code | Version | Size (D) | Smooth | Pack | D1 | H | L | h |
| 409TN003V0 | 3/8" | 10 | 1/2" | 78 | 51.0 | 21.5 | ||
| 409TN003VG | O-Ring | 3/8" | 10 | 1/2" | 78 | 51.0 | 21.5 | |
| 409TN004V0 | 1/2" | 10 | 1/2" | 78 | 54.0 | 21.5 | ||
| 409TN004VG | O-Ring | 1/2" | 10 | 1/2" | 78 | 54.0 | 21.5 |
* the last letter of the code indicates the type and color of the handle
Smooth
- Yellow
- Chrome
- Nickel
- White
Aluminum handle
- F Red
- E Blue
- G Yellow
- M Black
Iron handle
- A Red
- D Blue
- B Yellow
- N Black
Max working temperature: 100°C
Max working pressure: 10 bar
Body in forged brass
Threads: ISO 228
Max differential pressure: 1,2 bar
Thermostatic head attachment: 30x1,5
Internal presetting device
Suitable for fi ttings for copper, PEX or multilayer piping
Available with thermostatic head: art.400 – art.400A
Allowed fl uids: water (Glycole max percentage: 50%)
