Angle radiator valve, for iron pipe

Art. 407

Angle radiator valve, for iron pipe

Valvola ad angolo attacco tubo ferro Scheda tecnica - Angle radiator valve, for iron pipe
Legend
CW510LCW510L - low lead CW602NCW602N - DZR solarsolar

Items

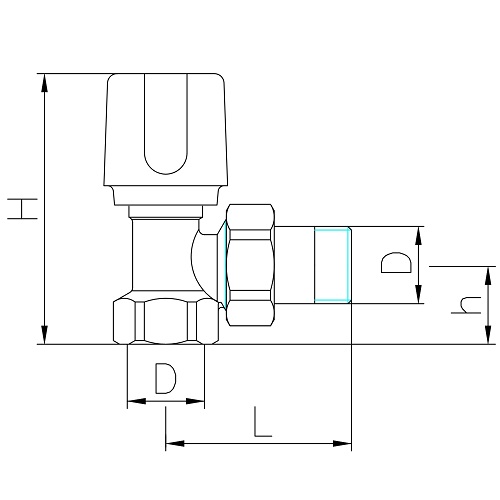

Code Version Size (D) Smooth Pack H L h
4070N00300 3/8" 10 72 48.0 19.0
4070N0030G O-Ring 3/8" 10 72 48.0 19.0
4070N00400 1/2" 10 74 50.0 21.5
4070N0040G O-Ring 1/2" 10 74 50.0 21.5

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black

Max working temperature: 100°C
Max working pressure: 10 bar
Body in forged brass
Threads: ISO 228
Suitable for fi ttings for copper, PEX or multilayer piping
Allowed fl uids: water (Glycole max percentage: 50%)
