Bianchi F.lli

Angle radiator valve for iron pipe

Art. 401

Angle radiator valve for iron pipe

Angle radiator valve for iron pipe %> Scheda tecnica - Angle radiator valve for iron pipe

Items

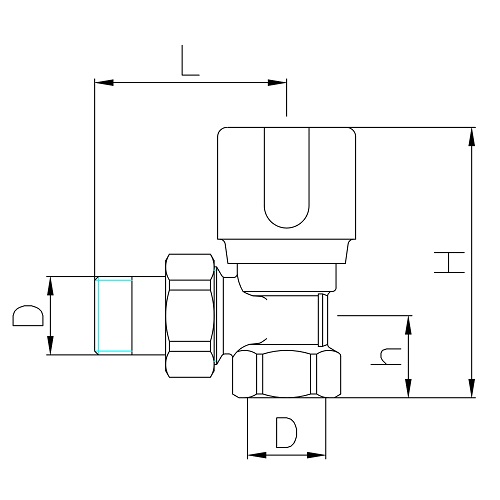

Code Version Size (D) Smooth Handle Pack I L h
4010N00300 3/8" Plastic 10 20.0 49.0 70.0
4010N0030G O-Ring 3/8" Plastic 10 20.0 49.0 70.0
4010N00400 1/2" Plastic 10 22.0 50.0 72.0
4010N0040G O-Ring 1/2" Plastic 10 22.0 50.0 72.0
4010N00500 3/4" Plastic 8 22.5 58.0 75.0
4010N0050G O-Ring 3/4" Plastic 8 22.5 58.0 75.0
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Max working temperature: 100°C
Max working pressure: 10 bar
Body in forged brass
Threads: ISO 228
Suitable for fittings for copper, PEX or multilayer piping
Allowed fluids: water (Glycole max percentage: 50%)
