4-ways distributor with wall connections. Euroconus connections for copper, Pex and multilayer pipe

Art. 3856

4-ways distributor with wall connections.
Euroconus connections for copper, Pex and multilayer pipe
For doublepipe system.
Supply coefficiente 100%

Distributore a 4 vie con attacchi a parete. Attacchi Eurocono per tubo rame, Pex e multistrato Scheda tecnica - 4-ways distributor with wall connections. Euroconus connections for copper, Pex and multilayer pipe
Legend
CW510LCW510L - low lead CW602NCW602N - DZR solarsolar

Items

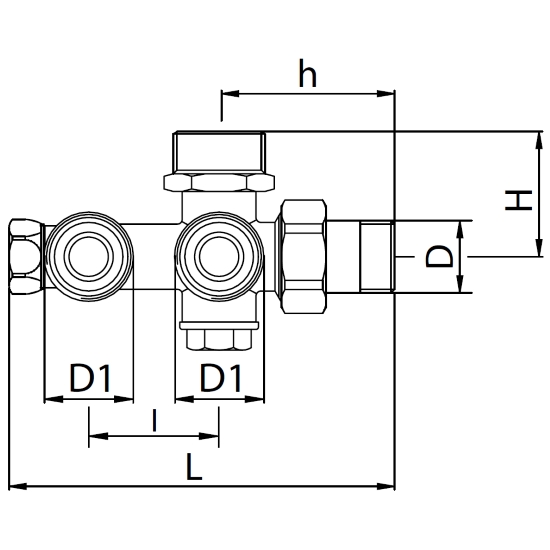

Code Size (D) Smooth Pack D1 H I L
3856000400 1/2" 10 3/4" 35 37.0 112.0

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black

Max working temperature: 100°C
Max working pressure: 10 bar
Body in forged brass
Threads: ISO 228
Thermostatic head attachment: M30x1,5
Suitable for fi ttings for copper, PEX or multilayer piping
Available with thermostatic head: art.400 – art. 400A
Allowed fl uids: water (Glycole max percentage: 50%)
The mono pipe valves with four outlets are supplied complete with brass supply feeler
