Bianchi F.lli

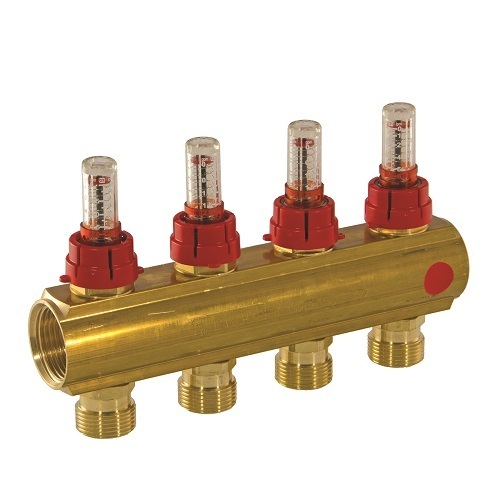

FF manifold with 3/4” M Euroconus outlets with fl ow meters

Art. 332M÷340M2

FF manifold with 3/4” M Euroconus outlets with fl ow meters

Collettore FF con uscite 3/4” M Eurocono e misuratori di portata Scheda tecnica - FF manifold with 3/4” M Euroconus outlets with fl ow meters
Legend
CW510LCW510L - low lead CW602NCW602N - DZR solarsolar

Items

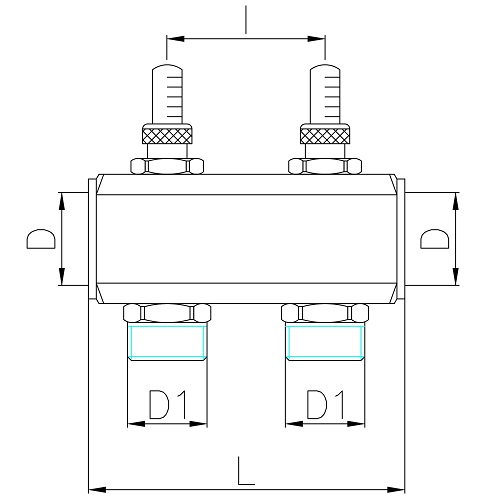

Code Size (D) Smooth Pack D1 I L
2 ways
332M060500 1" 1 3/4" 50.0 102.0
332M070500 1 1/4" 1 3/4" 50.0 102.0
3 ways
333M060500 1" 1 3/4" 50.0 152.0
333M070500 1 1/4" 1 3/4" 50.0 152.0
4 ways
334M060500 1" 1 3/4" 50.0 202.0
334M070500 1 1/4" 1 3/4" 50.0 202.0
5 ways
335M060500 1" 1 3/4" 50.0 252.0
335M070500 1 1/4" 1 3/4" 50.0 252.0
6 ways
336M060500 1" 1 3/4" 50.0 302.0
336M070500 1 1/4" 1 3/4" 50.0 302.0
7 ways
337M060500 1" 1 3/4" 50.0 352.0
337M070500 1 1/4" 1 3/4" 50.0 352.0
8 ways
338M060500 1" 1 3/4" 50.0 402.0
338M070500 1 1/4" 1 3/4" 50.0 402.0
9 ways
339M060500 1" 1 3/4" 50.0 452.0
339M070500 1 1/4" 1 3/4" 50.0 452.0
10ways
340M060500 1" 1 3/4" 50.0 502.0
340M070500 1 1/4" 1 3/4" 50.0 502.0
11ways
340M160500 1" 1 3/4" 50.0 552.0
340M170500 1 1/4" 1 3/4" 50.0 552.0
12ways
340M260500 1" 1 3/4" 50.0 602.0
340M270500 1 1/4" 1 3/4" 50.0 602.0

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black

Working temperature: 5-70°C
Max working pressure: 6 bar
Threads: ISO 228
Flowmeter scale: 0-8 l/min
Suitable for fittings for copper, PEX or multilayer piping
Allowed fluids: water (Glycole max percentage: 50%)
Available with actuators: art.350-351
Ball valves must be used in totally open-close position
Manifolds will be supplied mounted on the brackets; accessories will be supplied separately, inside the same box
