Terminal parts for manifold with automatic air discharge valve and drain ball valve
Art. 298
Terminal parts for manifold with automatic air discharge valve and drain ball valve
Legend
CW510L - low lead
CW602N - DZR
solar
Items

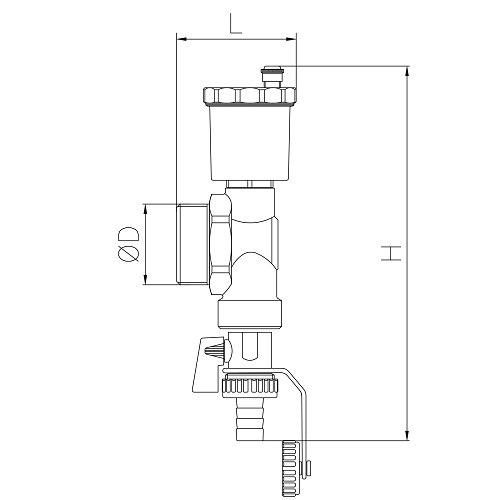

| Code | Size (D) | Smooth | Pack | H | L |
| 2980000500 | 3/4" | 5 | 150 | 48.0 | |
| 2980000600 | 1" | 5 | 150 | 48.0 | |
| 2980N00600 | 1" | 5 | 150 | 48.0 | |
| 2980000700 | 1 1/4" | 5 | 150 | 48.0 | |
| 2980N00700 | 1 1/4" | 5 | 150 | 48.0 |
* the last letter of the code indicates the type and color of the handle
Smooth
- Yellow
- Chrome
- Nickel
- White
Aluminum handle
- F Red
- E Blue
- G Yellow
- M Black
Iron handle
- A Red
- D Blue
- B Yellow
- N Black
Max working temperature: 80°C
Max working pressure: 10 bar
Threads: ISO 228
