Manifold with 4 male outlets 1/2”, and oblique valve

Art. 204B

Manifold with 4 male outlets 1/2”, and oblique valve

Collettore a 4 attacchi fi letto maschio 1/2” con valvola inclinata Scheda tecnica - Manifold with 4 male outlets 1/2”, and oblique valve
Legend
CW510LCW510L - low lead CW602NCW602N - DZR solarsolar

Items

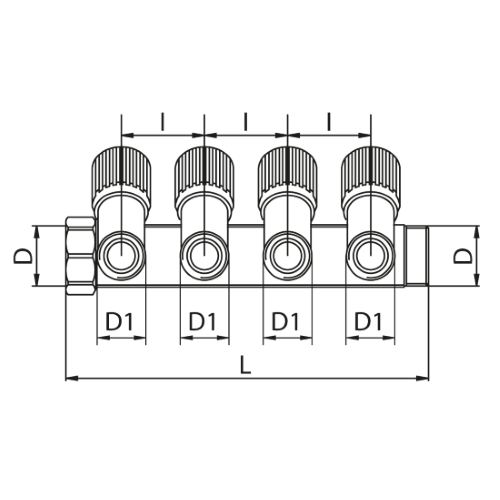

Code Size (D) Smooth Pack D1 I L
Conical seat - Inner diameter: 16mm
204B05040A 3/4" 5 1/2" 36.0 156.0
204B05040D 3/4" 5 1/2" 36.0 156.0
Flat seat - Inner diameter: 15mm
204B05046A 3/4" 5 1/2" 36.0 156.0
204B05046D 3/4" 5 1/2" 36.0 156.0

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black

Max working temperature: 100°C
Max working pressure: 10 bar
Threads: ISO 228
Suitable for fi ttings for copper, PEX or multilayer piping
