3 ways male manifold Euroconus with incorporated ball valve

Art. 203C

3 ways male manifold Euroconus with incorporated ball valve

Collettore a 3 attacchi filetto maschio Eurocono con valvola a sfera incorporata Scheda tecnica - 3 ways male manifold Euroconus with incorporated ball valve
Legend
CW510LCW510L - low lead CW602NCW602N - DZR solarsolar

Items

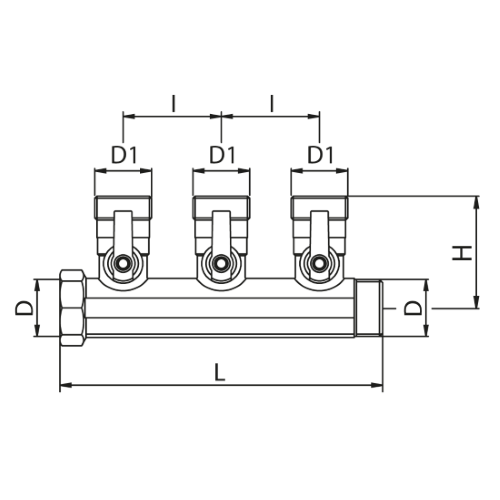

Code Size (D) Smooth Pack D1 H I L
203C05050A 3/4" 5 3/4" 55 45.0 148.0
203C05050D 3/4" 5 3/4" 55 45.0 148.0
203C06050A 1" 5 3/4" 55 45.0 148.0
203C06050D 1" 5 3/4" 55 45.0 148.0

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black

Max working temperature: 100°C
Max working pressure: 10 bar
Threads: ISO 228
Suitable for fi ttings for copper, PEX or multilayer piping
