Art. 7661

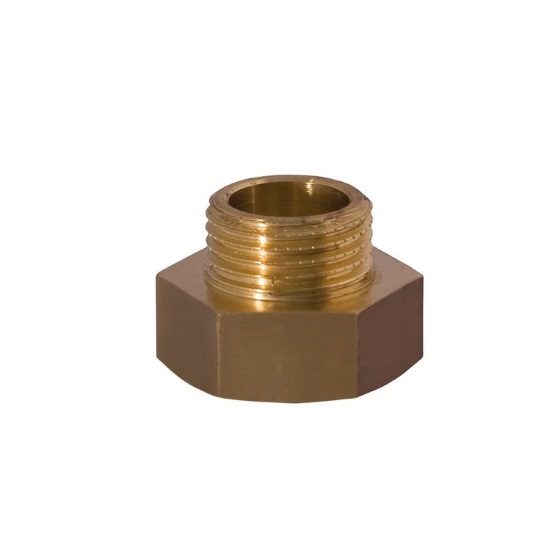

Riduzione FM
Stampa scheda
Articoli

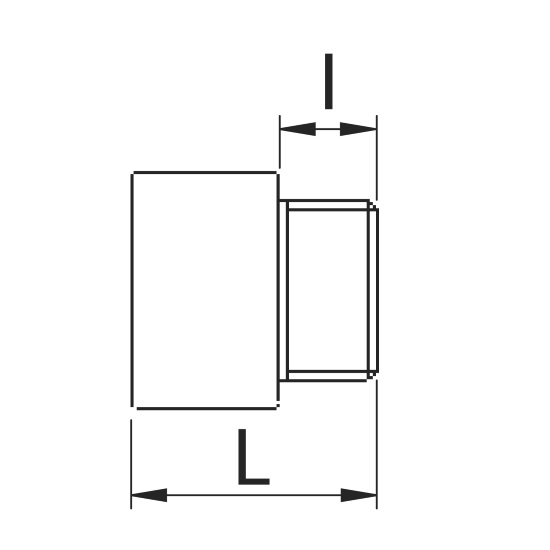

| Codice | Dimensione (D) | Finitura | D1 | I | L | Imballo |
| 0766103020 | 3/8" | 1/4" | 10 | 22 | 50 | |
| 076610302C | 3/8" | 1/4" | 10 | 22 | 50 | |
| 0766104020 | 1/2" | 1/4" | 10 | 22 | 50 | |
| 076610402C | 1/2" | 1/4" | 10 | 22 | 50 | |
| 0766104030 | 1/2" | 3/8" | 10 | 22 | 50 | |
| 076610403C | 1/2" | 3/8" | 10 | 22 | 50 | |
| 0766105040 | 3/4" | 1/2" | 10 | 22 | 50 | |
| 076610504C | 3/4" | 1/2" | 10 | 22 | 50 | |
| 0766106040 | 1" | 1/2" | 10 | 25 | 25 | |
| 076610604C | 1" | 1/2" | 10 | 25 | 25 | |
| 0766106050 | 1" | 3/4" | 11 | 26 | 25 | |
| 076610605C | 1" | 3/4" | 11 | 26 | 25 | |
| 0766107060 | 1 1/4" | 1" | 12 | 28,5 | 10 | |
| 076610706C | 1 1/4" | 1" | 12 | 28,5 | 10 | |
| 0766108060 | 1 1/2" | 1" | 16 | 31,5 | 10 |
Finitura
- Giallo
- Cromo
- Nichel
- Bianco
Temperatura d'esercizio: 0°C -100°C
Pressione massima d'esercizio : 10 bar
Filetti maschio: ISO 7/1
Filetti femmina: ISO 228
