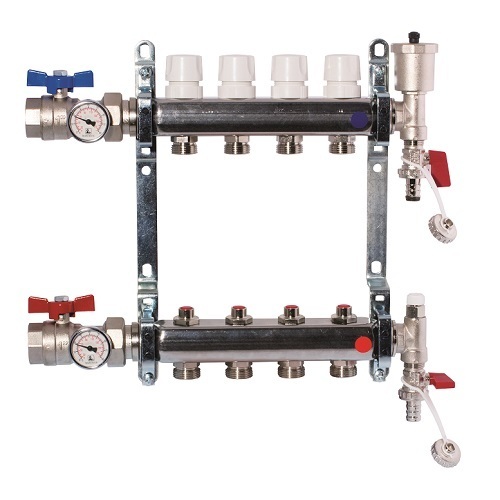

FF stainless steel AISI 304L manifolds with 3/4” male Euroconus outlets, with thermostatic screws and lockshield valves. Ball valves thermometer included
FF stainless steel AISI 304L manifolds with 3/4” male Euroconus outlets, with thermostatic screws and lockshield valves. Ball valves thermometer included Art. 422M, manifold’s brackets ART. 271 and terminal parts for manifolds ART. 2980N and 2990N
Legend
CW510L - low lead
CW602N - DZR
solar
Items

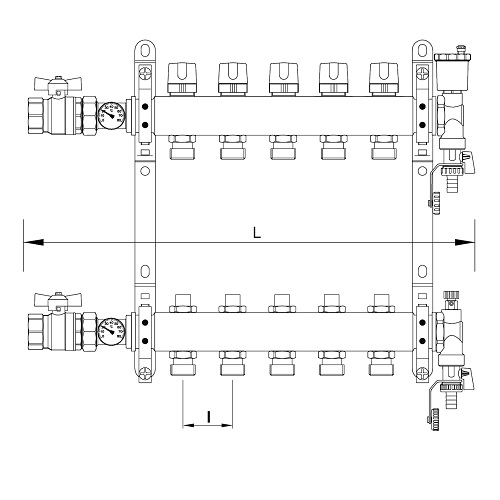

| Code | Size (D) | Smooth | Pack | D1 | I | L | |||||
| 2 ways | |||||||||||
| A332A6050A | 1" | 1 | 3/4" | 50.0 | 291.0 | ||||||
| 3 ways | |||||||||||
| A333A6050A | 1" | 1 | 3/4" | 50.0 | 341.0 | ||||||
| 4 ways | |||||||||||
| A334A6050A | 1" | 1 | 3/4" | 50.0 | 391.0 | ||||||
| 5 ways | |||||||||||
| A335A6050A | 1" | 1 | 3/4" | 50.0 | 441.0 | ||||||
| 6 ways | |||||||||||
| A336A6050A | 1" | 1 | 3/4" | 50.0 | 491.0 | ||||||
| 7 ways | |||||||||||
| A337A6050A | 1" | 1 | 3/4" | 50.0 | 541.0 | ||||||
| 8 ways | |||||||||||
| A338A6050A | 1" | 1 | 3/4" | 50.0 | 591.0 | ||||||
| 9 ways | |||||||||||
| A339A6050A | 1" | 1 | 3/4" | 50.0 | 641.0 | ||||||
| 10 ways | |||||||||||
| A340A6050A | 1" | 1 | 3/4" | 50.0 | 691.0 | ||||||
| 11 ways | |||||||||||
| A340A6150A | 1" | 1 | 3/4" | 50.0 | 741.0 | ||||||
| 12 ways | |||||||||||
| A340A6250A | 1" | 1 | 3/4" | 50.0 | 791.0 | ||||||
* the last letter of the code indicates the type and color of the handle
Smooth
- Yellow
- Chrome
- Nickel
- White
Aluminum handle
- F Red
- E Blue
- G Yellow
- M Black
Iron handle
- A Red
- D Blue
- B Yellow
- N Black
Working temperature: 5-70°C
Max working pressure: 6 bar
Filetti / Threads: ISO 228
Flowmeter scale: 0-8 l/min
Suitable for fittings for copper, PEX or multilayer piping
Allowed fluids: water (Glycole max percentage: 50%)
Available with actuators: art.350-351
Ball valves must be used in totally open-close position
Manifolds will be supplied mounted on the brackets; accessories will be supplied separately, inside the same box
