Male male extension
Art. 7648
Male male extension
Items

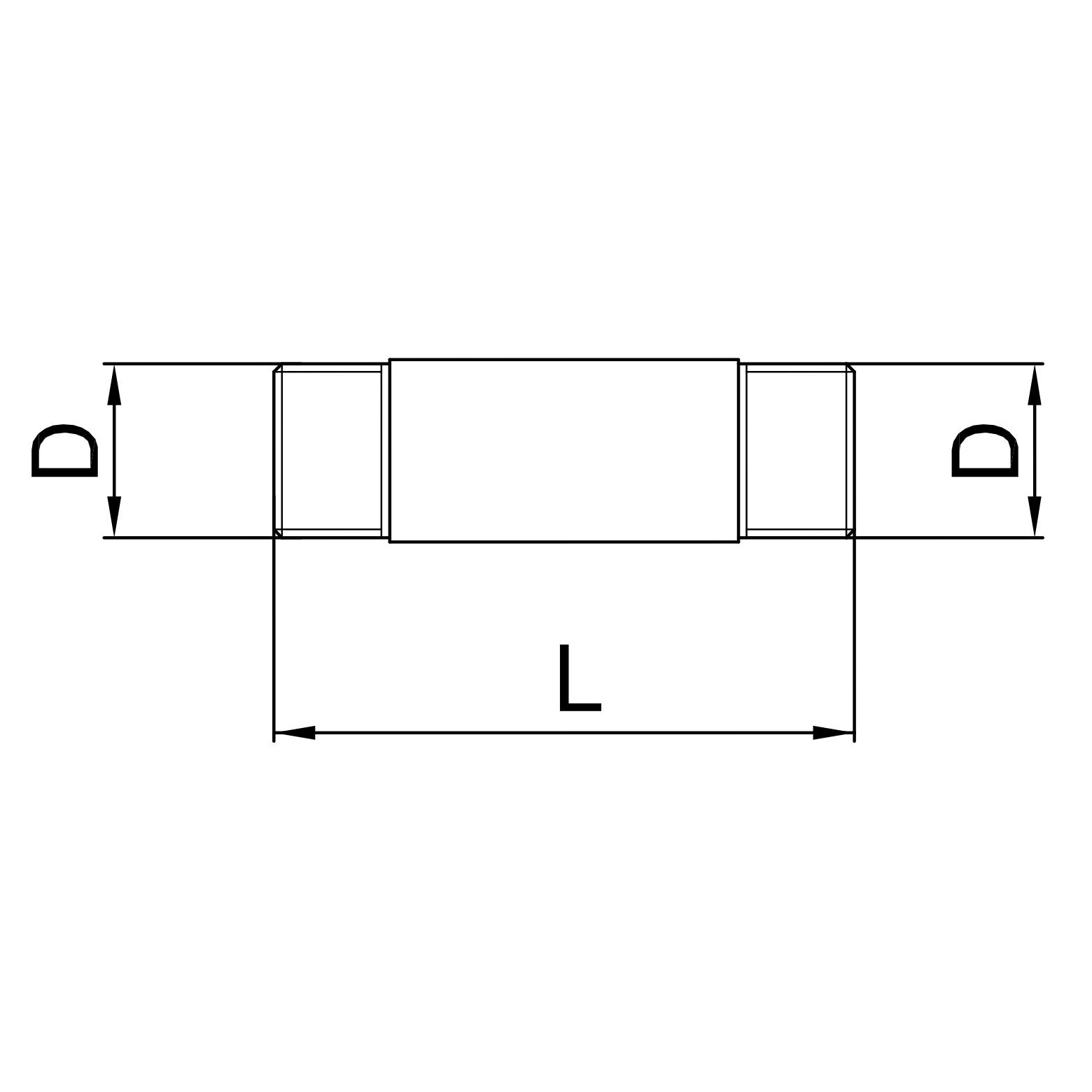

| Code | Size (D) | Smooth | Pack | I | L |
| 0764804400 | 1/2" | 25 | 10.0 | 40.0 | |
| 0764804500 | 1/2" | 25 | 14.5 | 50.0 | |
| 0764804600 | 1/2" | 20 | 14.5 | 60.0 | |
| 0764804750 | 1/2" | 20 | 14.5 | 75.0 | |
| 0764804800 | 1/2" | 10 | 14.5 | 80.0 | |
| 0764804A10 | 1/2" | 10 | 14.5 | 100.0 | |
| 0764804B10 | 1/2" | 10 | 14.5 | 150.0 | |
| 0764804A20 | 1/2" | 10 | 14.5 | 200.0 | |
| 0764805500 | 3/4" | 10 | 14.5 | 50.0 | |
| 0764805600 | 3/4" | 10 | 14.5 | 60.0 | |
| 0764805750 | 3/4" | 10 | 14.5 | 75.0 | |
| 0764805800 | 3/4" | 10 | 14.5 | 80.0 | |
| 0764805A10 | 3/4" | 10 | 14.5 | 100.0 | |
| 0764805B10 | 3/4" | 10 | 14.5 | 150.0 | |
| 0764805A20 | 3/4" | 10 | 14.5 | 200.0 | |
| 0764806500 | 1" | 10 | 12.5 | 50.0 | |
| 0764806600 | 1" | 10 | 16.5 | 60.0 | |
| 0764806750 | 1" | 10 | 16.5 | 75.0 | |
| 0764806A10 | 1" | 5 | 16.5 | 100.0 | |
| 0764806B10 | 1" | 5 | 16.5 | 150.0 | |
| 0764806A20 | 1" | 5 | 16.5 | 200.0 |
Smooth
- Yellow
- Chrome
- Nickel
- White
Working temperature: 0°C -100°C
Max working pressure: 10 bar
Male threads: ISO 7/1
Female threads: ISO 228
