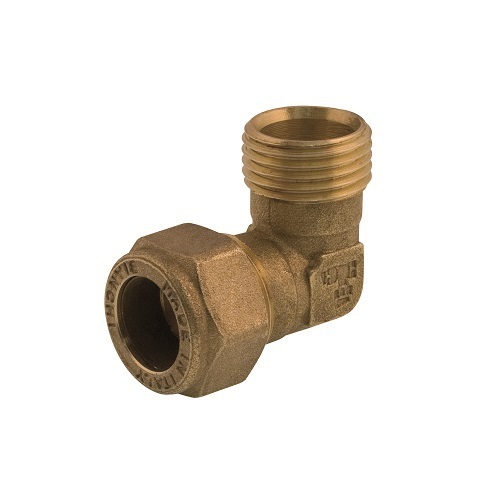

Angle coupling with nut, male connection, DZR brass

Art. 718

Angle coupling with nut, male connection, DZR brass

Raccordo curvo maschio con dado, in ADZ Scheda tecnica - Angle coupling with nut, male connection, DZR brass
Legend
CW510LCW510L - low lead CW602NCW602N - DZR solarsolar

Items

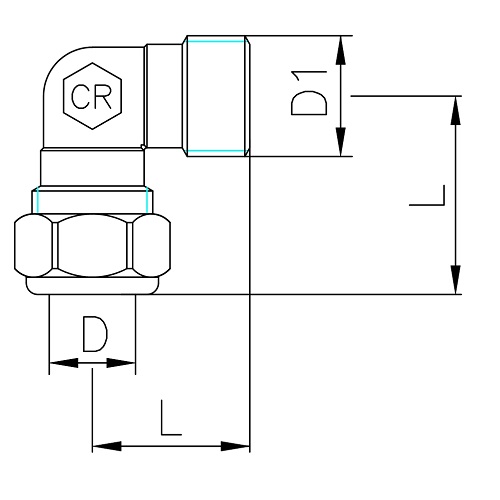

Code Size (D) Smooth Pack D1 H L
718003200A 3/8" 50 10 32 24.0
718003220A 3/8" 50 12 32 24.0
718004200A 1/2" 25 10 34 25.0
718004220A 1/2" 25 12 34 25.0
718004250A 1/2" 25 15 34 25.0
718004280A 1/2" 25 18 39 25.0
718005250A 3/4" 25 15 32 29.0
718005280A 3/4" 25 18 40 31.0
718005320A 3/4" 25 22 40 31.0
718006380A 1" 10 28 46 38.0

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black

Working temperature: 0°C – 100°C
Max working pressure: 10 bar
Threads: ISO 228
