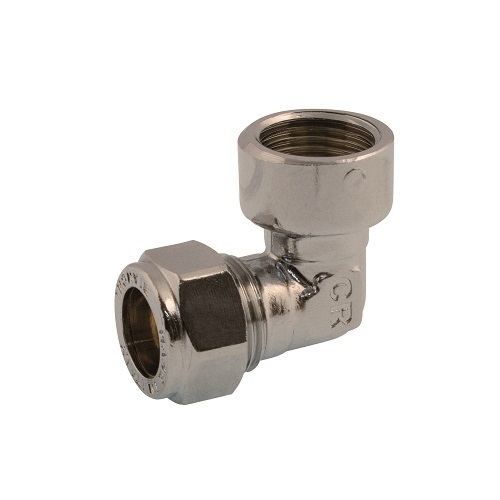

Angle coupling with nut, female connection, DZR brass

Art. 716C

Angle coupling with nut, female connection, DZR brass

Raccordo curvo femmina con dado, in ADZ Scheda tecnica - Angle coupling with nut, female connection, DZR brass
Legend
CW510LCW510L - low lead CW602NCW602N - DZR solarsolar

Items

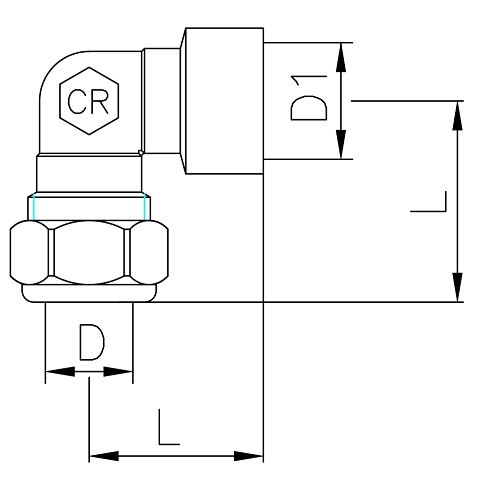

Code Size (D) Smooth Pack D1 H L
7160C3200A 3/8" 25 12 31 30.0
7160C3220A 3/8" 25 12 31 30.0
7160C3250A 3/8" 25 15 31 30.0
7160C4200A 1/2" 25 10 31 30.0
7160C4220A 1/2" 25 12 31 30.0
7160C4250A 1/2" 25 15 33 30.0

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black

Working temperature: 0°C – 100°C
Max working pressure: 10 bar
Threads: ISO 228
