Bianchi F.lli

Double straight pipe fitting

Art. 620

Double straight pipe fitting

Raccordo diritto doppio Scheda tecnica - Double straight pipe fitting
Legend
CW510LCW510L - low lead CW602NCW602N - DZR solarsolar

Items

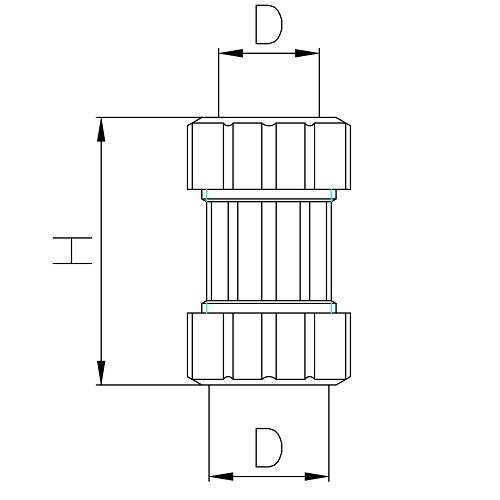

Code Size (D) Smooth Pack H
6200003000 20 15 52
6200003500 25 10 60
6200004200 32 8 67
6200005000 40 5 77
6200006000 50 2 90
6200007300 63 2 115

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black

Working temperature: 0°C – 100°C
Max working pressure: 10 bar
Male threads: ISO 7/1
Female threads: ISO 228
