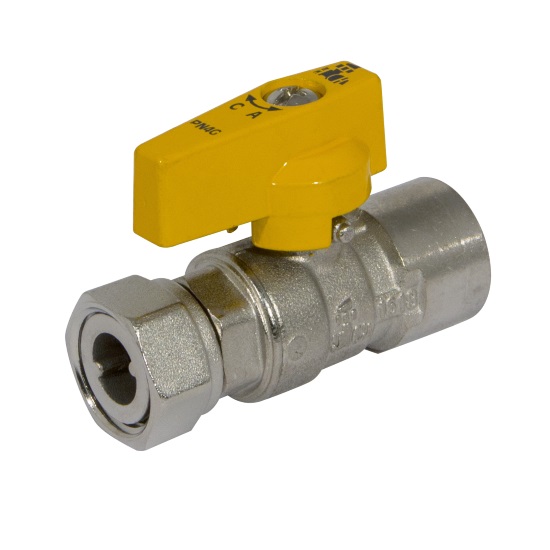

Ball valve with female connection and sliding nut
Art. 528-G
Ball valve with female connection and sliding nut
Legend
CW510L - low lead
CW602N - DZR
solar
Items

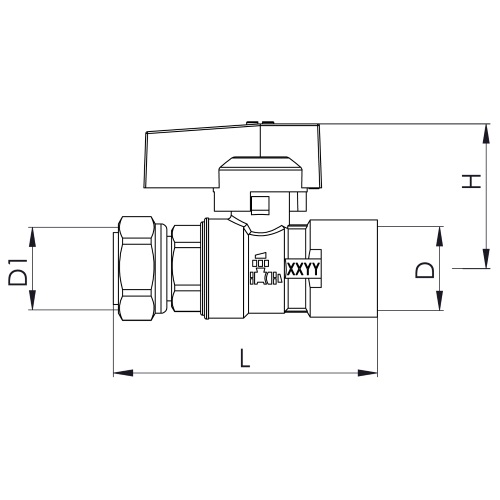

| Code | Size (D) | Smooth | Pack | D1 | H | L |
| 528004040G | 1/2" | 10 | 1/2" | 44 | 68.0 | |
| 528004050G | 1/2" | 10 | 3/4" | 44 | 69.0 | |
| 528005050G | 3/4" | 10 | 3/4" | 42 | 73.0 | |
| 528005060G | 3/4 | 8 | 1 | 45 | 85.0 | |
| 528006070G | 1" | 6 | 1 1/4" | 0.0 |
* the last letter of the code indicates the type and color of the handle
Smooth
- Yellow
- Chrome
- Nickel
- White
Aluminum handle
- F Red
- E Blue
- G Yellow
- M Black
Iron handle
- A Red
- D Blue
- B Yellow
- N Black
Flow: Standard
Working temperature: -20 - +60°C
Max working pressure: MOP5
Body in forged brass
Female Threads: ISO 7/1 Rp
Male Thread: ISO 7/1 R
