Bianchi F.lli

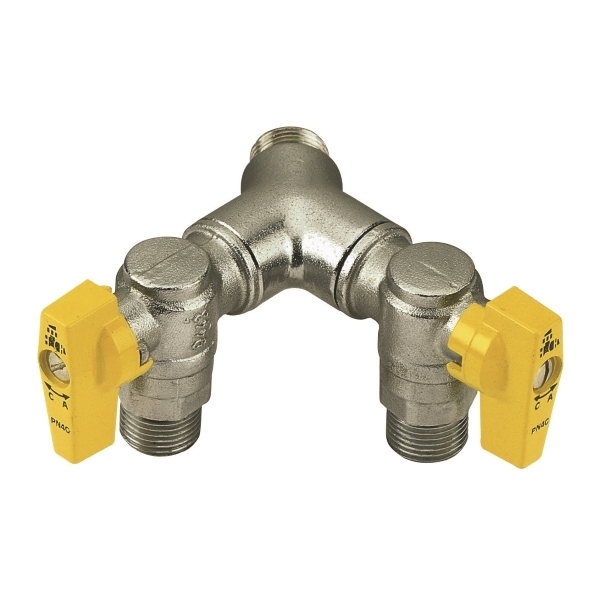

Double angle gas ball valve, male connection

Art. 5205

Double angle gas ball valve, male connection

Rubinetto doppio a sfera a squadra, attacco maschio Scheda tecnica - Double angle gas ball valve, male connection
Legend
CW510LCW510L - low lead CW602NCW602N - DZR solarsolar

Items

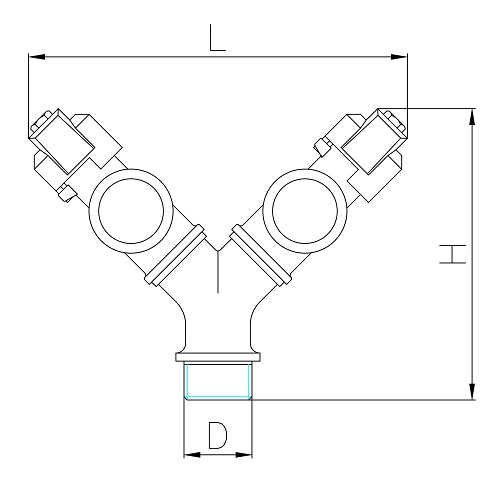

Code Size (D) Smooth Pack H L
520500040G 1/2" 5 92 118.0

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black

Flow: Standard
Working temperature: -20 - +60°C
Max working pressure: MOP5
Body in forged brass
Female Threads: ISO 7/1 Rp
Male Thread: ISO 7/1 R
