Bianchi F.lli

Oil barrel ball bibcock with hose connection

Art. 479

Oil barrel ball bibcock with hose connection

Rubinetto a sfera per serbatoio con portagomma Scheda tecnica - Oil barrel ball bibcock with hose connection
Legend
CW510LCW510L - low lead CW602NCW602N - DZR solarsolar

Items

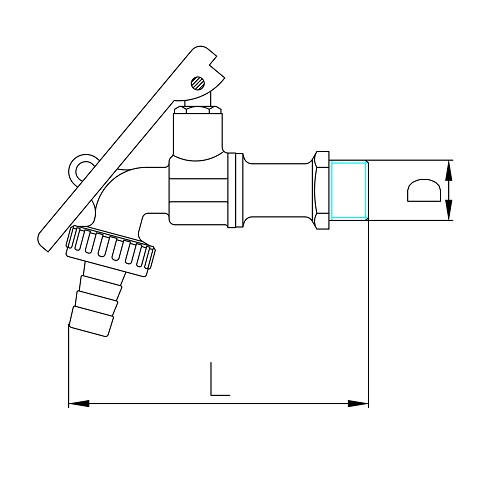

Code Size (D) Smooth Pack D1 L
4790000400 1/2" 8 3/4" 102.0
4790000500 3/4" 8 3/4" 102.0

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black

Working temperature: 0-110°C
Max working pressure: 10 bar
Body in forged brass
Threads: ISO 228
