Bianchi F.lli

Two piece body gas ball valve FLxFIP

Art. 465

Forged brass body. Chrome-plated brass ball, PTFE ball seats, blow-out proof stem with NBR O-Rings. Aluminum lever handle. Rated 600 WOG

Scheda tecnica - Two piece body gas ball valve FLxFIP
Legend
CW510LCW510L - low lead CW602NCW602N - DZR solarsolar

Items

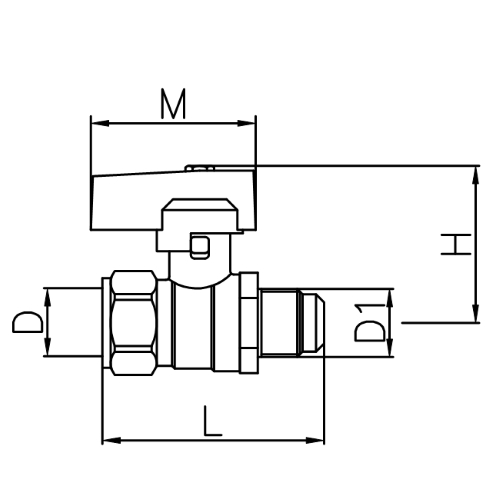

Code Size (D) D1
465L04611G 1/2" F NPT 9/16" FL
465L04621G 1/2" F NPT 3/8" FL
465L04631G 1/2" F NPT 1/2" FL
465L04641G 1/2" F NPT 3/4" FL
465L05641G 3/4" F NPT 5/8" FL
465L05651G 3/4" F NPT 15/16" FL

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black
