DZR brass ball valve copper to copper compression, iron lever handle
Art. 438
DZR brass ball valve copper to copper compression, iron lever handle
Legend
CW510L - low lead
CW602N - DZR
solar
Items

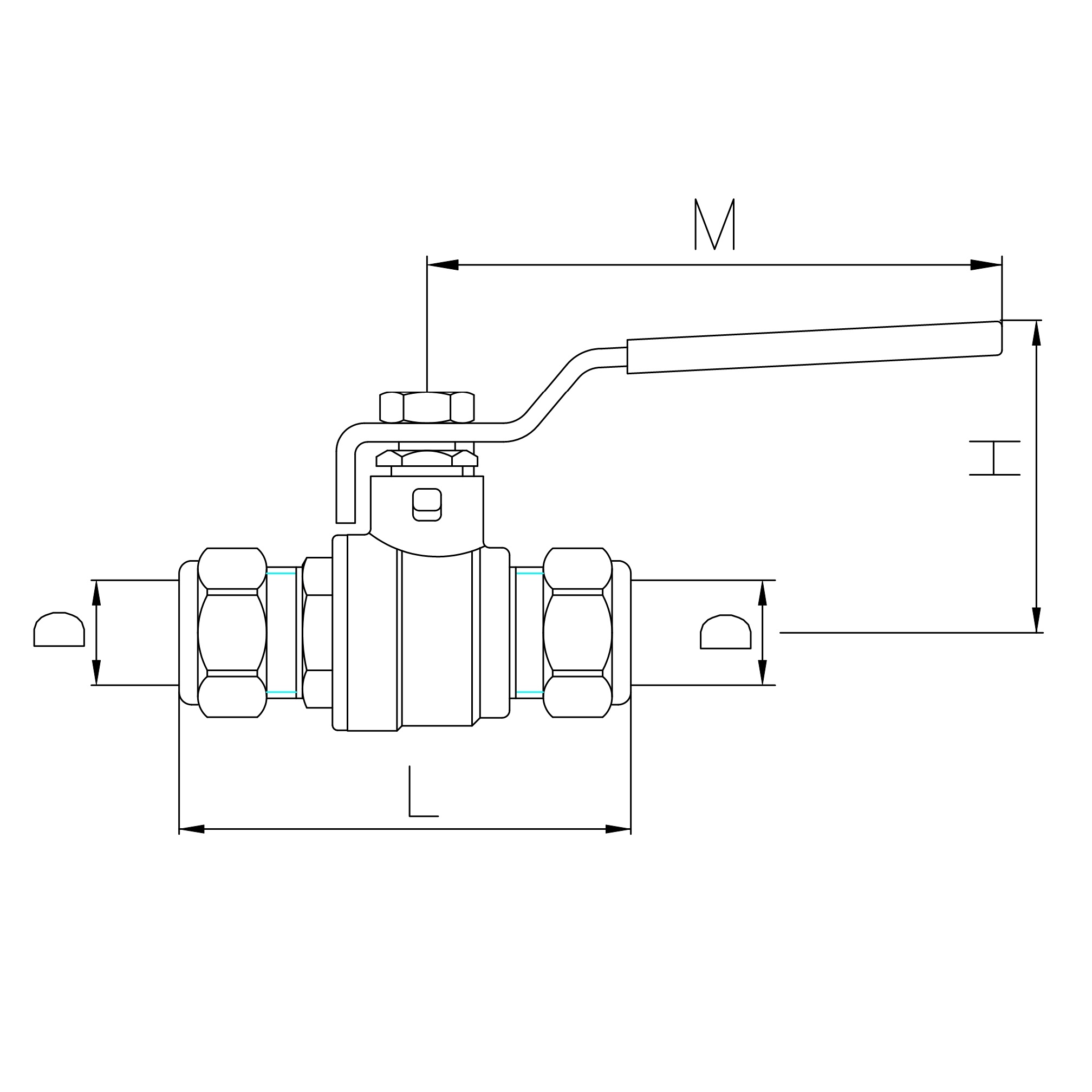

| Code | Size (D) | Smooth | Pack | H | I | L |
| 43800003AA | 12 | 10 | 40 | 69.0 | 84.0 | |
| 43800004AA | 15 | 10 | 40 | 70.0 | 84.0 | |
| 438000A4AA | 18 | 10 | 40 | 72.0 | 84.0 | |
| 43800005AA | 22 | 5 | 55 | 74.0 | 92.5 | |
| 43800006AA | 28 | 4 | 61 | 84.0 | 112.0 |
* the last letter of the code indicates the type and color of the handle
Smooth
- Yellow
- Chrome
- Nickel
- White
Aluminum handle
- F Red
- E Blue
- G Yellow
- M Black
Iron handle
- A Red
- D Blue
- B Yellow
- N Black
Working temperature: 0-110°C
Max working pressure: 25 bar (art. 425BZ – 438)
Max working pressure: 16 bar (art. 537E – 560E)
Body in forged brass
Threads: ISO 228
