Bianchi F.lli

FF heavy full bore gas ball valve with iron lever handle

Art. 425-2

FF heavy full bore gas ball valve with iron lever handle

Valvola a sfera pesante per gas passaggio totale FF, maniglia a leva in ferro Scheda tecnica - FF heavy full bore gas ball valve with iron lever handle
Legend
CW510LCW510L - low lead CW602NCW602N - DZR solarsolar

Items

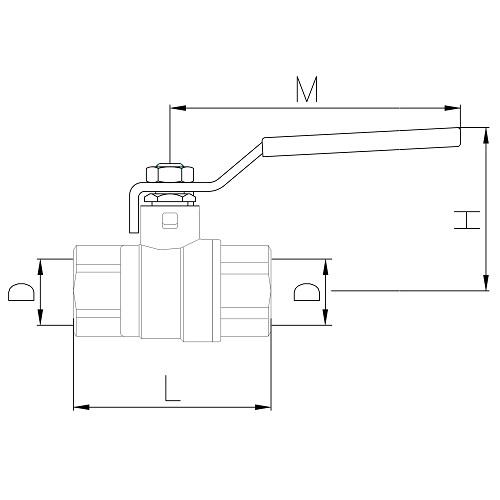

Code Size (D) Smooth Pack H L M
According to norm UNI EN 331
425200020B 1/4" 12 38 46.0 81.0
425200030B 3/8" 12 38 47.0 81.0
425200043B 1/2" 12 52 61.0 93.0
425200053B 3/4" 8 58 68.0 112.0
425200063B 1" 6 63 81.0 112.0
425200073B 1 1/4" 4 73 94.0 143.0
425200083B 1 1/2" 4 79 105.0 143.0
425200093B 2" 2 95 126.0 162.0

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black

Flow: Totale / Full
Working temperature: -20 - +60°C
Max working pressure: MOP5
Packing nut
Body in forged brass
Female Threads: ISO 7/1 Rp
Male Thread: ISO 7/1 R
