MF ball valve PN30 with aluminum lever handle
Art. 424A
MF ball valve PN30 with aluminum lever handle
Legend
CW510L - low lead
CW602N - DZR
solar
Items

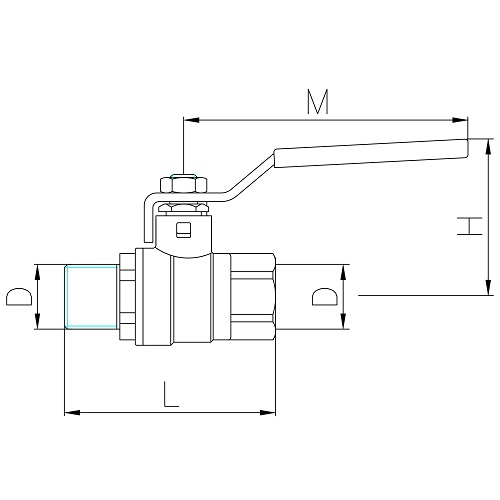

| Code | Size (D) | Smooth | Pack | H | L | M |
| 424A00043M | 1/2" | 12 | 52 | 54.0 | 93.0 | |
| 424A00053M | 3/4" | 10 | 57 | 66.0 | 93.0 | |
| 424A00063M | 1" | 6 | 62 | 77.0 | 112.0 | |
| 424A00073M | 1 1/4" | 6 | 66 | 91.0 | 112.0 | |
| 424A00083M | 1 1/2" | 4 | 77 | 101.0 | 143.0 | |
| 424A00093M | 2" | 2 | 81 | 117.0 | 143.0 |
* the last letter of the code indicates the type and color of the handle
Smooth
- Yellow
- Chrome
- Nickel
- White
Aluminum handle
- F Red
- E Blue
- G Yellow
- M Black
Iron handle
- A Red
- D Blue
- B Yellow
- N Black
Flow: Standard
Working temperature: 0-110°C
Max working pressure: 30 bar
Body in forged brass
Anti blowing stem
Threads: ISO 228
Valves 425B - 424B and 425A - 424A in sizes 1 1/4” - 1 1/2” - 2” are the same articles.
