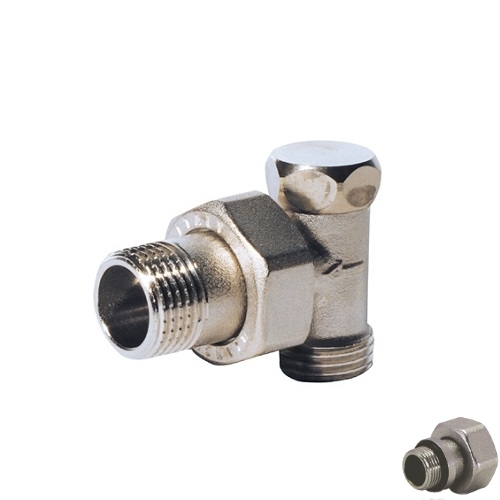

Euroconus angle lockshield-valve light pattern brass cap for copper, multilayer and Pex tube

Art. 414EB÷414BX

Euroconus angle lockshield-valve light pattern brass cap for copper, multilayer and Pex tube

Detentore angolo Eurocono tipo export con cappuccio ottone, attacco tubo rame, multistrato e Pex Scheda tecnica - Euroconus angle lockshield-valve light pattern brass cap for copper, multilayer and Pex tube
Legend
CW510LCW510L - low lead CW602NCW602N - DZR solarsolar

Items

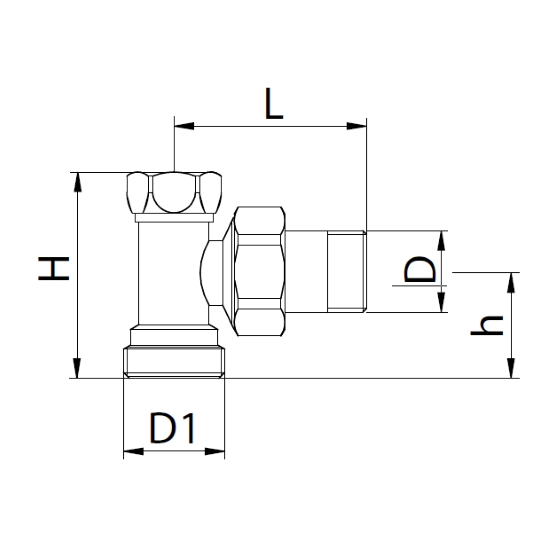

Code Version Size (D) Smooth Pack D1 H L h
414EB
414E0004B0 1/2" 10 3/4" 49 47.0 26.0
414E0004BG O-Ring 1/2" 10 3/4" 49 47.0 26.0
414BX
414X0004B0 1/2" 10 24x19 49 47.0 26.0
414X0004BG O-Ring 1/2" 10 24x19 49 47.0 26.0

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black

Max working temperature: 100°C
Max working pressure: 10 bar
Body in forged brass
Threads: ISO 228
Suitable for fi ttings for copper, PEX or multilayer piping
Allowed fl uids: water (Glycole max percentage: 50%)
