Angle lockshield-valve for iron pipe
Art. 408B
Angle lockshield-valve for iron pipe
Items

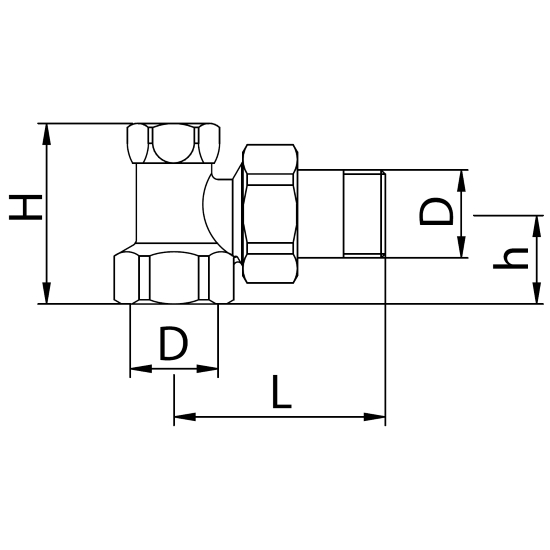

| Code | Version | Size (D) | Smooth | Pack | I | L | h |
| 4080N003B0 | 3/8" | 10 | 19.0 | 48.0 | 43.0 | ||
| 4080N003BG | O-Ring | 3/8" | 10 | 19.0 | 48.0 | 43.0 | |
| 4080N004B0 | 1/2" | 10 | 21.0 | 50.0 | 45.0 | ||
| 4080N004BG | O-Ring | 1/2" | 10 | 21.0 | 50.0 | 45.0 |
Smooth
- Yellow
- Chrome
- Nickel
- White
Max working temperature: 100°C
Max working pressure: 10 bar
Body in forged brass
Threads: ISO 228
Suitable for fittings for copper, PEX or multilayer piping
Allowed fluids: water (Glycole max percentage: 50%)
