Bianchi F.lli

Straight lockshield-valve for iron pipe

Art. 404B

Straight lockshield-valve for iron pipe

Straight lockshield-valve for iron pipe %> Scheda tecnica - Straight lockshield-valve for iron pipe

Items

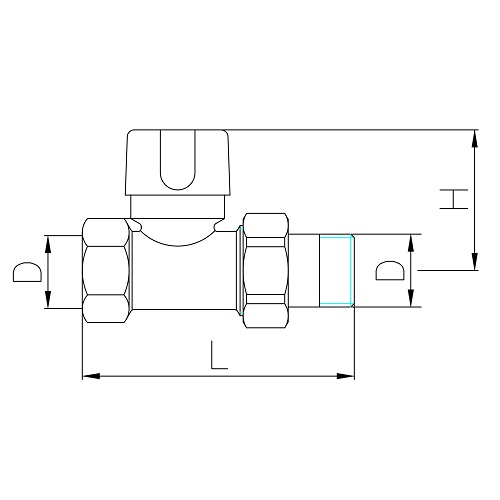

Code Version Size (D) Smooth Pack L h
404BN00300 3/8" 10 71.0 39.0
404BN0030G O-Ring 3/8" 10 71.0 39.0
404BN00400 1/2" 10 78.0 41.0
404BN0040G O-Ring 1/2" 10 78.0 41.0
404BN00500 3/4" 6 93.0 44.0
404BN0050G O-Ring 3/4" 6 93.0 44.0
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Max working temperature: 100°C
Max working pressure: 10 bar
Body in forged brass
Threads: ISO 228
Suitable for fittings for copper, PEX or multilayer piping
Allowed fluids: water (Glycole max percentage: 50%)
