Bianchi F.lli

Thermoelectric head with micro-switch and 4 power cables

Art. 351

Thermoelectric head with micro-switch and 4 power cables

Average temperature: 0-100°C
Closing and opening timing: 3-4 min.
Cable lenght pipe: 1m
Thermostatic valve attachment: M30x1,5
Protection: IP 54
Possible combination with manifolds equipped with interception valves and zone valves
Normally in close position

Thermoelectric head with micro-switch and 4 power cables %> Scheda tecnica - Thermoelectric head with micro-switch and 4 power cables

Items

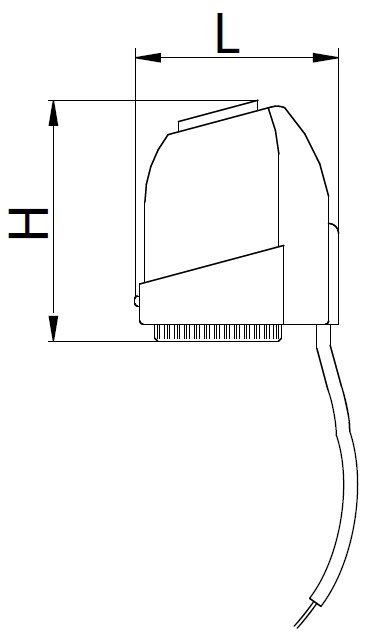

Code Version Smooth Handle Pack h
3510000000 230 V Plastic 1 56.0
35100V2400 24 V Plastic 1 56.0
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Thermostatic valve attachment: M30x1,5
Sensitive element: liquid
Body in shock-proof ABS
Possibility of blocking adjustment position
Available with thermostatic valves : THERMO, art. 384, 385T, 3851, 3851D
All thermostatic heads must be installed in horizontal position
