Manifold made of brass bar with 1/2 female outlets, interaxis 36mm
Art. 242EA÷250EA
Manifold made of brass bar with 1/2 female outlets, interaxis 36mm
Legend
CW510L - low lead
CW602N - DZR
solar
Items

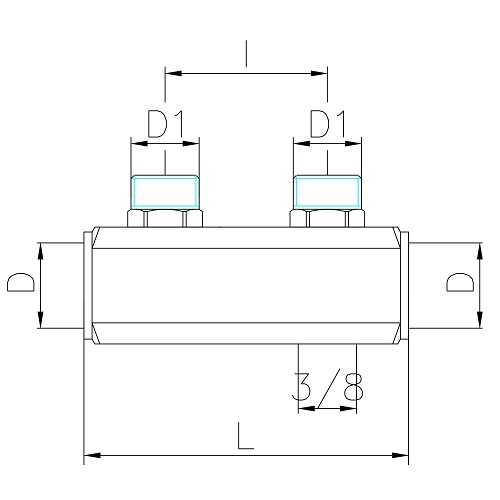

| Code | Size (D) | Smooth | Pack | D1 | I | L | |||||
| 2 ways | |||||||||||
| 242EA60500 | 1" | 6 | 3/4" | 50.0 | 102.0 | ||||||
| 3 ways | |||||||||||
| 243EA60500 | 1" | 4 | 3/4" | 50.0 | 152.0 | ||||||
| 4 ways | |||||||||||
| 244EA60500 | 1" | 4 | 3/4" | 50.0 | 202.0 | ||||||
| 5 ways | |||||||||||
| 245EA60500 | 1" | 3 | 3/4" | 50.0 | 252.0 | ||||||
| 6 ways | |||||||||||
| 246EA60500 | 1" | 4 | 3/4" | 50.0 | 302.0 | ||||||
| 7 ways | |||||||||||
| 247EA60500 | 1" | 1 | 3/4" | 50.0 | 352.0 | ||||||
| 8 ways | |||||||||||
| 248EA60500 | 1" | 1 | 3/4" | 50.0 | 402.0 | ||||||
| 9 ways | |||||||||||
| 249EA60500 | 1" | 1 | 3/4" | 50.0 | 452.0 | ||||||
| 10 ways | |||||||||||
| 250EA60500 | 1" | 1 | 3/4" | 50.0 | 502.0 | ||||||
| 12 ways | |||||||||||
| 250EA60501 | 1" | 1 | 3/4" | 50.0 | 602.0 | ||||||
| 250EA60501 | 1" | 1 | 3/4" | 50.0 | 602.0 | ||||||
* the last letter of the code indicates the type and color of the handle
Smooth
- Yellow
- Chrome
- Nickel
- White
Aluminum handle
- F Red
- E Blue
- G Yellow
- M Black
Iron handle
- A Red
- D Blue
- B Yellow
- N Black
Max working temperature: 110°C
Max working pressure: 10 bar
Body in profi led brass bar
Threads: ISO 228
Suitable for fi ttings for copper, PEX or multilayer piping
