Art. 747

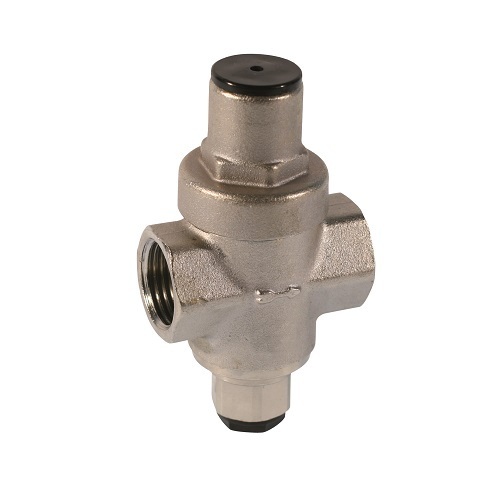

Pressure reducer PN16

Print datasheet

Here following some files to download:

Items

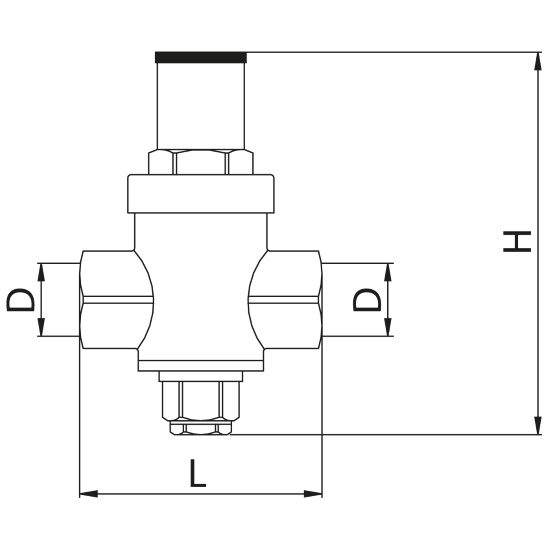

Code Size (D) Smooth Pack H L
7470000400 1/2" 1 89 49.0
7470000500 3/4" 1 94 50.0

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black

Pre setting: 3 bar
Outlet settings: 1-5,5bar
Working temperature: 0°C (escluso ghiaccio / excluding ice) - 130°C
Outlet Ps set tolerance on varying inlet pressure: +/- 10%
Threads: ISO 228
Allowed fluids: water (Glycole max percentage: 50%) and compressed air
Pressure reducing valve is an automatic valve that reduces and stabilizes the pressure of a fl uid in a water distribution conduit according to a preset value.
