Manifold with 4 female outlets

  • Manifold with 4 female outlets
  • Datasheet - Manifold with 4 female outlets
  1. Manifold with 4 female outlets
  2. Datasheet - Manifold with 4 female outlets
Legend

CW510LCW510L - low lead

CW602NCW602N - DZR

solarsolar

Art. 224

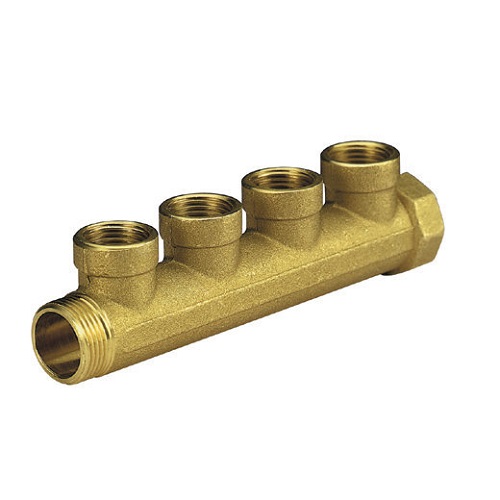

Manifold with 4 female outlets

Print datasheet

Here following some files to download:

Items

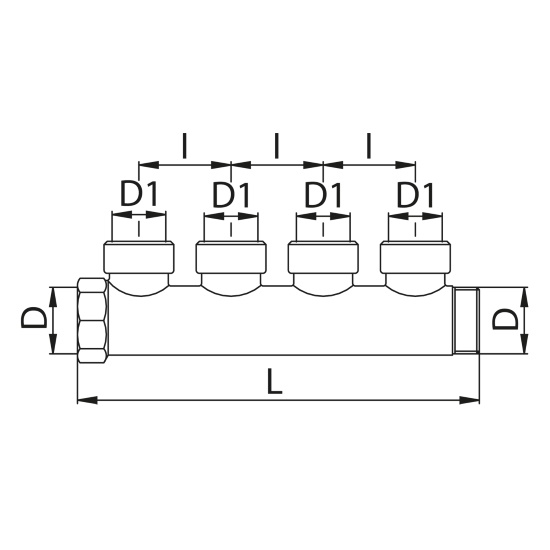

Code Size (D) Smooth Pack D1 I L
2240050400 3/4" 8 1/2" 36.0 157.0
2240C50400 3/4" 8 1/2" 36.0 157.0
2240060400 1" 6 1/2" 36.0 157.0
2240C60400 1" 6 1/2" 36.0 157.0

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black

Max working temperature: 110°C
Max working pressure: 10 bar
Body in forged brass
Threads: ISO 228
Suitable for fi ttings for copper, PEX or multilayer piping
