MINI MF forged brass ball valve lever aluminium handle

  • MINI MF forged brass ball valve lever aluminium handle
  • Scheda tecnica - MINI MF forged brass ball valve lever aluminium handle
  1. MINI MF forged brass ball valve lever aluminium handle
  2. Scheda tecnica - MINI MF forged brass ball valve lever aluminium handle
Art. 427G

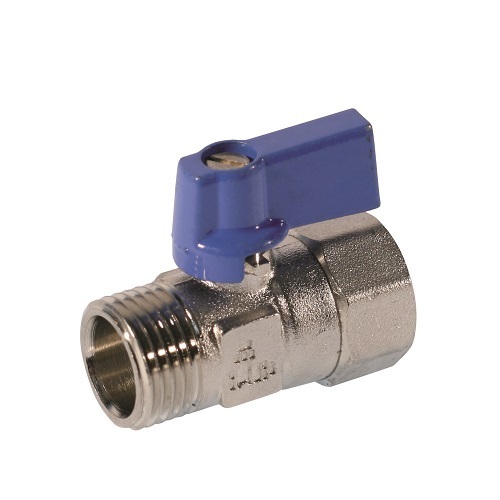

MINI MF forged brass ball valve lever aluminium handle

Print datasheet

Items

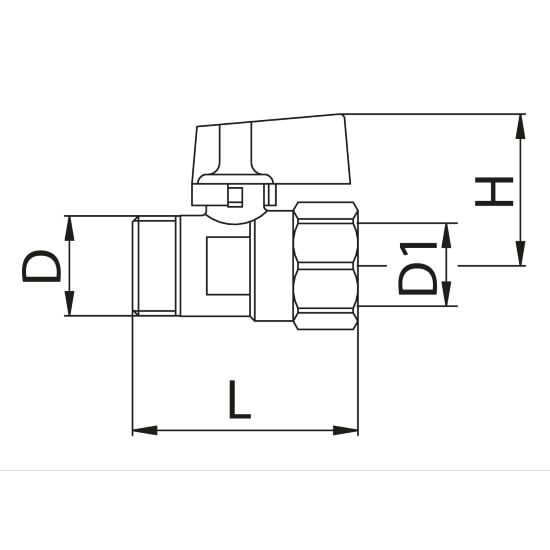

Code Size (D) Smooth Handle D1 H L Pack
427G00040A 1/2" Aluminum 1/2" 21,5 47 25
427GN0040A 1/2" Aluminum 1/2" 21,5 47 25
427G00040D 1/2" Aluminum 1/2" 21,5 47 25
427GN0040D 1/2" Aluminum 1/2" 21,5 47 25
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Working temperature: 0-90°C
Max working pressure: 16bar
Body in bar brass (art. 426 -427)
Body in forged brass (art. 427G -828 -829)
Threads: ISO 228

🍪
