Art. 419

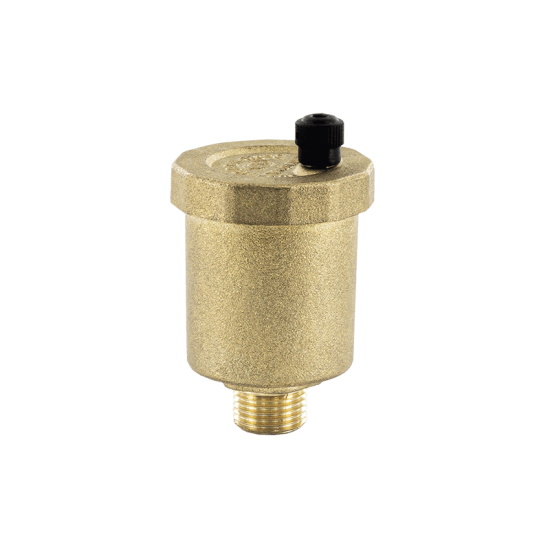

Automatic air discharge valve

Print datasheet

Here following some files to download:

Items

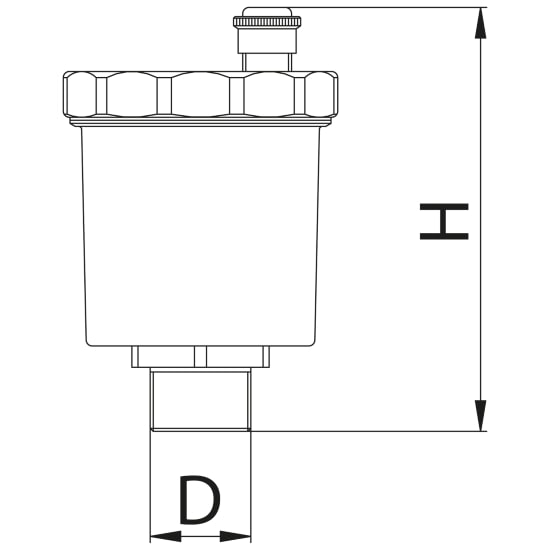

Code Size (D) Smooth Pack H
4190000300 3/8" 24 70
4190000400 1/2" 24 70
4190N00300 3/8" 24 70
4190N00400 1/2" 24 70

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black

Max working temperature: 110°C (solare/solar: 150°C)
Max working pressure: 10 bar
Threads: ISO 228
Float: PP
Allowed fl uids: water (Glycole max percentage: 50%)
